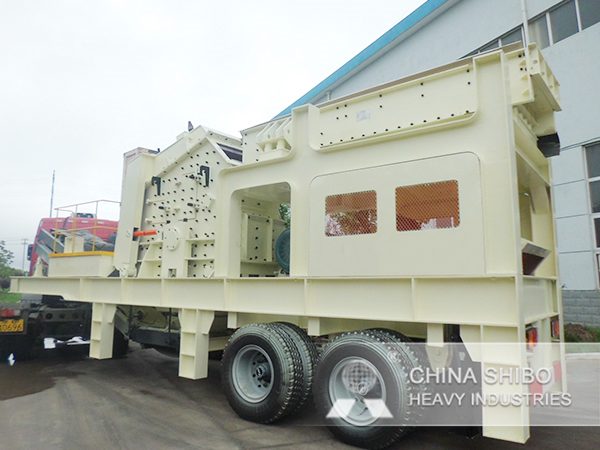

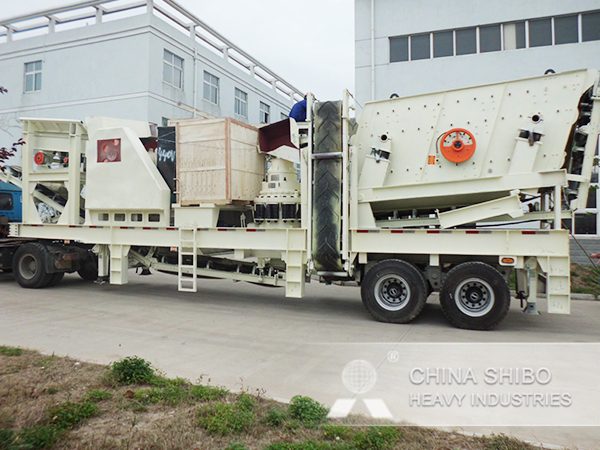

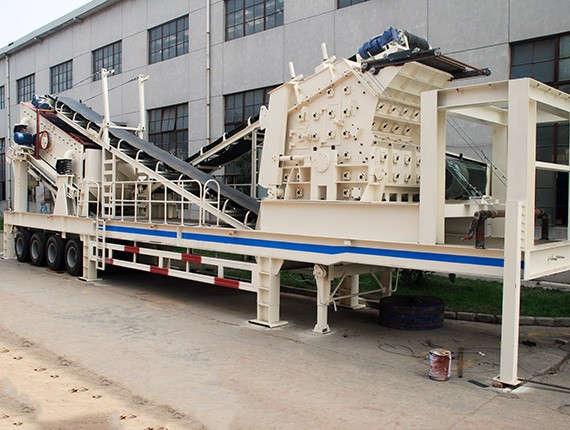

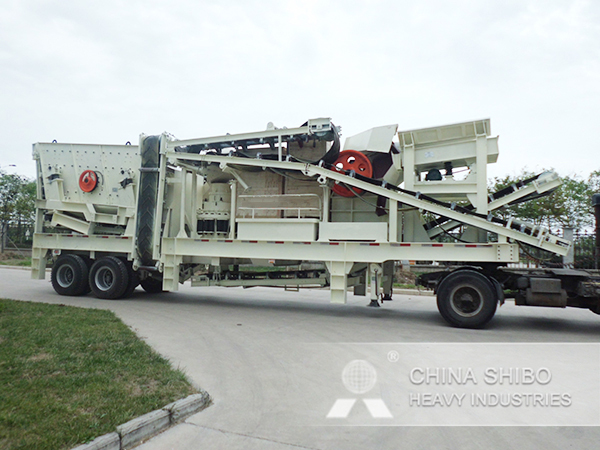

Tire Mobile Crushing Station

Tire Mobile crusher is widely used in the current mining market. It is available for River pebbles, rocks (limestone, granite, basalt, diabase, andesite, etc.), ore tailings,etc

Application:widely used in the road and bridge construction, urban construction, metallurgy, energy, and other crushing and screening industries.

Tire Mobile Crushing Station

Introduction

Tire-type mobile crushing plant is a new type of mobile crushing equipment, which can supply the customers the best crushing and screening solutions. Considering from the customers’ standpoint, efficiently integrates the feeding equipment, crushing equipment, screening equipment, effectively solving the site constraints of the fixed crushing plants. It not only avoids the site infrastructure, but also expands the material stack space due to the compact equipment layout. Mobile crushing plant has the obvious advantages of crushing while moving, winning more and more customers’ recognition, Mobile crushing plant is divided into mobile jaw crusher plant, mobile impact crusher plant, mobile cone crusher plant, which is widely used in the road and bridge construction, urban construction, metallurgy, energy, and other crushing and screening industries.

Tire Mobile Crushing Station

Advantage

1.High performance

2.Compact structure,occupy less space

3.Increase the space of material stacking

4.Convenient for equipment to reside in the workplace

5.Convenient for road transit and deeping into the working place

Tire Mobile Crushing Station

Tire Mobile Crushing Station

Tire Mobile Crushing Station

Tire Mobile Crushing Station

Parameter

Technical Data//Model MJ400PY900
Transportation size (mm) 14700x2900x4350
Weight(t) 45
Tire Configuration Dualaxial
Vibrating feeder GZD 960x3800
Crusher 1 PE400x600
Crusher2 PYB900
Vibrating screen 3YZS1237
Belt conveyer above screen B500x14m
Belt conveyer under screen B650x6m
Main belt conveyer B650x9m
Side belt conveyer B500x4m / 2
Electric control (standard) control box + control panel
Support leg (standard) 4
