Introduction
The mobile jaw crushing plant are characterised by their uncompromising design and sturdiness. The outstanding overall performance of the machines results from the harmonious interplay of all components. In this way, the series of machine provide a variety of innovative solutions with regard to efficiency, availability, versatility and, last but not least, the quality of the end product.
Advantage
1.High performance
2.Convenient for road transportation
3.Compact structure,occupy less space
4.Increase the space of material stacking
5.Fast and convent for installation on the scene

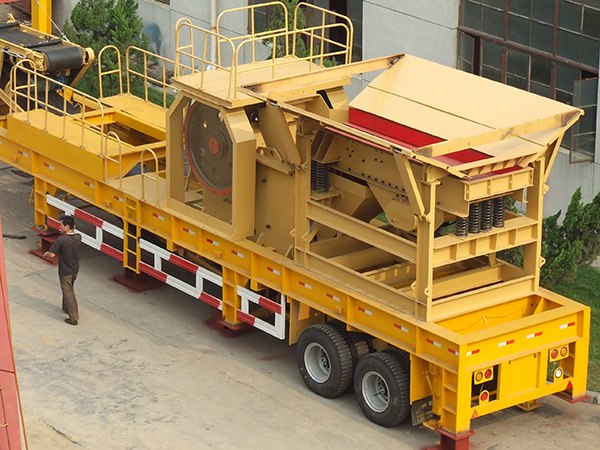

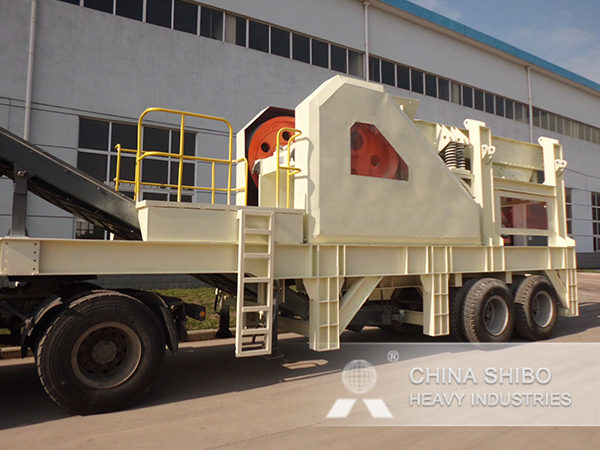

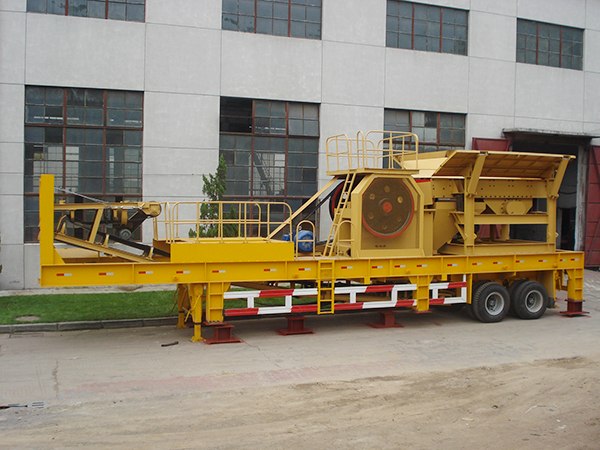

Gallery
Parameter
| Item | Unit | MJ600 | MJ750 | MJ900 | MJE870 | MJE1100 |
| Transportation Length | mm | 11900 | 13100 | 14600 | 14600 | 15400 |
| Transportation Width | mm | 2550 | 2550 | 1950 | 1550 | 1950 |
| Transportation Height | mm | 3650 | 4450 | 4500 | 4500 | 4500 |
| Max Length | mm | 12100 | 13300 | 14600 | 14600 | 15400 |
| Max Width | mm | 2900 | 2950 | 3300 | 3300 | 3300 |
| Max Height | mm | 4060 | 4810 | 5300 | 5300 | 5700 |
| Weight | t | 39 | 57 | 83 | 65 | 92 |
| Tire Configuration | Dual-axial | Dual-axial | Dual-axial | Dual-axial | Dual-axial | |
| Crusher | PE600x900 | PE750 x 1060 | PE900 x 1200 | JCE870 x 1100 | JCE1100 x 1300 | |
| Max Feeding Size | mm | 480 | 630 | 750 | 720 | 960 |
| Discharge Opening Range | mm | 65-160 | 80-140 | 100-200 | 85-150 | 125-260 |
| Capacity | t/h | 90-180 | 110-320 | 220-450 | 125-350 | 350-720 |
| Vibrating Feeder | GZD960x3800 | GZD1100x4200 | GZD1300x4900 | GZD1300x4900 | GZD1300x4900 | |
| Main Belt Conveyor | B800x8.5M | B1000x9M | B1200x9.5M | B1200x9.5M | B1200x9.5M | |
| Side-Opening(Optional) | B450x3M | B500x3.5M | B650x4M | B650x4M | B650x4M | |
| Generator Set(Optional) | kw | 160 | 200 | 220 | 250 | 300 |
| Inor-Separator(Optional) | RCMD(C)-8 | RCMD(C)-10 | RCMD(C)-12 | RCMD(C)-12 | RCMD(C)-12 |
