Introduction
This machine is suitable to crush the medium hardness and brittle material in the mining, cement, coal, metallurgy, building materials, highway, gasification and so on. It has the simple structure, high crushing Ratio, high production efficiency, and can be dry or wet crushing . The grate gap of the equipment can be adjusted according to user requirements to get the different final sizes to meet the different needs of different users.
Advantage
1.convenient maintenance
2.wear resistant and impact resistant
3.compact structure,lees easy-wearing parts
4.sealed structure,less pollution and ash leakage of machine
5.The granularity can be adjusted according to the requirement

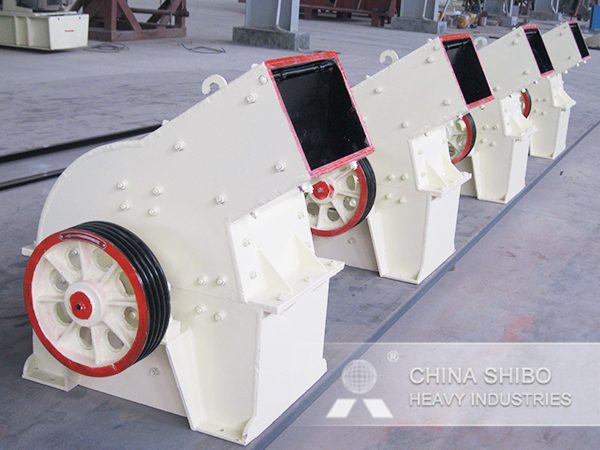

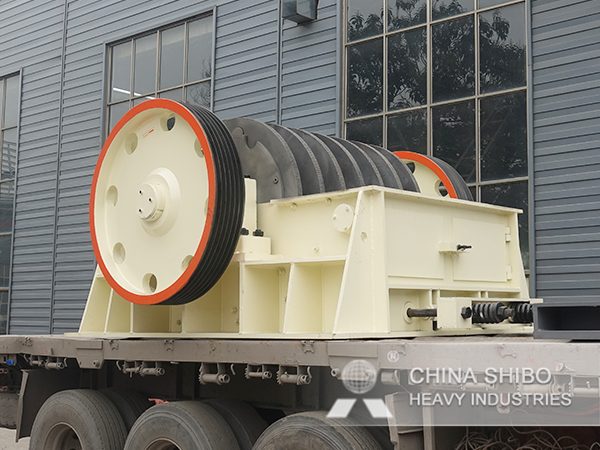

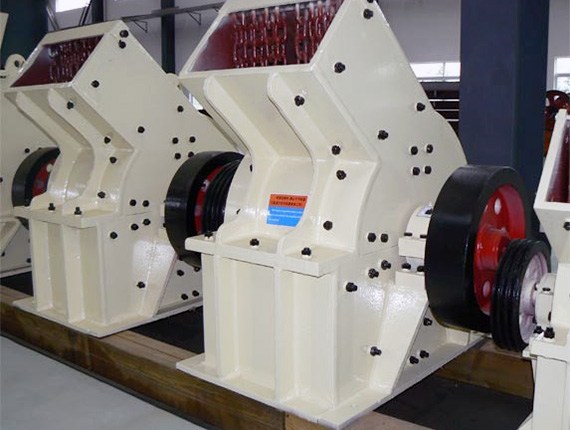

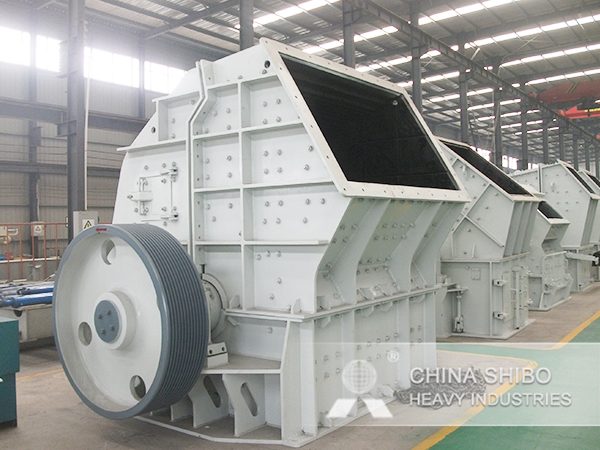

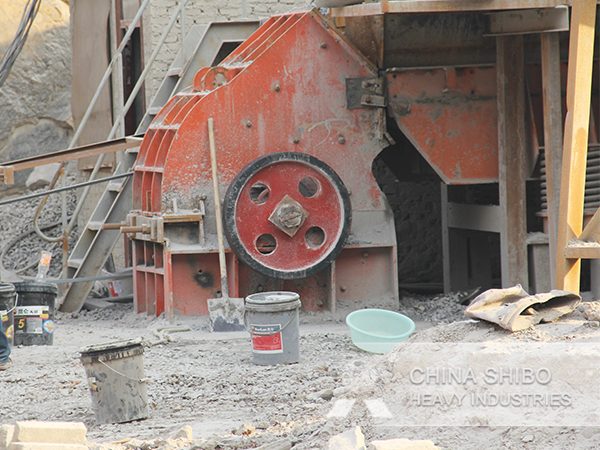

Gallery
Parameter
| Model | Feeding Size (mm) | Discharginh Size (mm) | Capacity (t/h) | Power (kw) | Weight (t) | Dimensions (mm) |
| PCΦ400×300 | ≤200 | ≤25 | 5-10 | 11 | 0.8 | 900 × 670 × 860 |
| PCΦ600×400 | ≤250 | ≤30 | 10-22 | 22 | 2.26 | 1200 × 1050 × 1200 |
| PCΦ800×600 | ≤250 | ≤35 | 18-40 | 55 | 4.8 | 1310 × 1180 × 1310 |
| PCΦ1000×800 | ≤350 | ≤35 | 25-50 | 75 | 5.9 | 1600 × 1390 × 1575 |
| PCΦ1000×1000 | ≤350 | ≤35 | 30-55 | 90 | 8 | 1800 × 1590 × 1775 |
