Introduction
CS Series High-efficiency Spring Cone Crusher concentrates on the specialty of high-frequency, optimization of cavity and reasonable impact. It is based on the conceptions of laminated crushing principle and more crushing and less grinding. It is researched and designed by our company, according to the customers’ requirement. This CS series cone crusher is widely used to crush metalliferous and non­metalliferous ores, cement, construction and sand. The materials can be iron stone, non-ferrous metal ore, granite, limestone, quartzite, sandstone, cobble, etc.
Advantage
1.low operation cost
2.separate lubrication
3.convenient cleaning-up
4.easy maintenance and operation
5.high performance and reliability
6.good product composition granularity

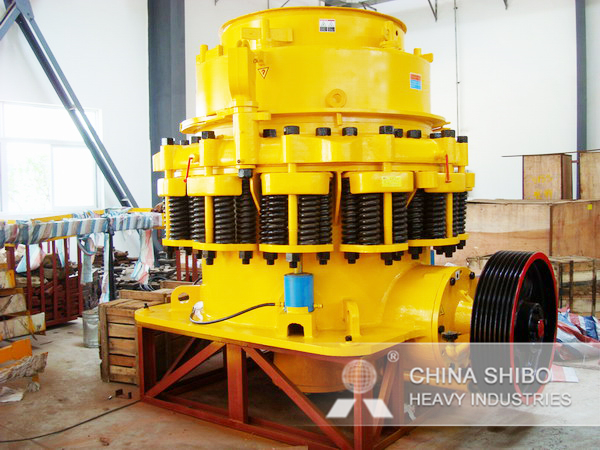

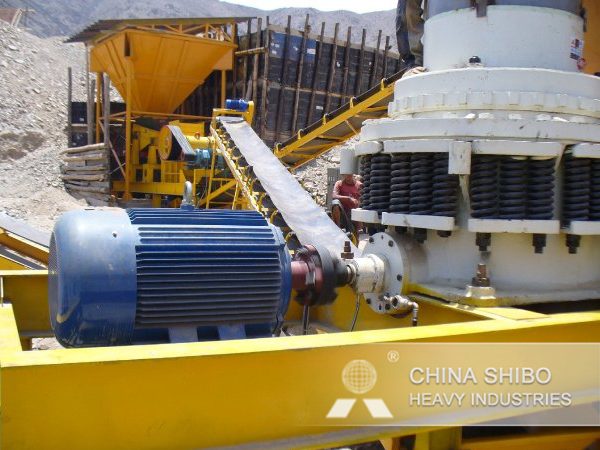

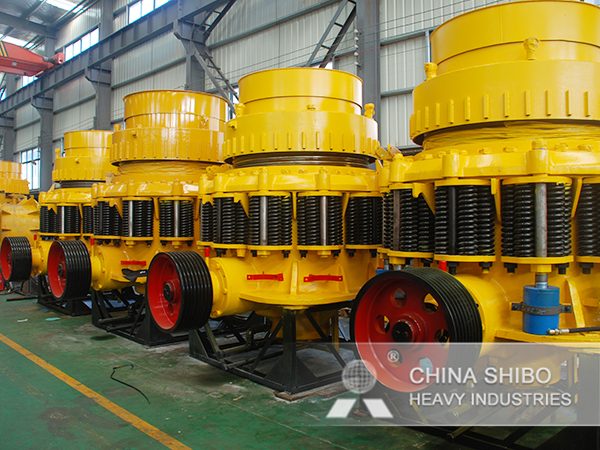

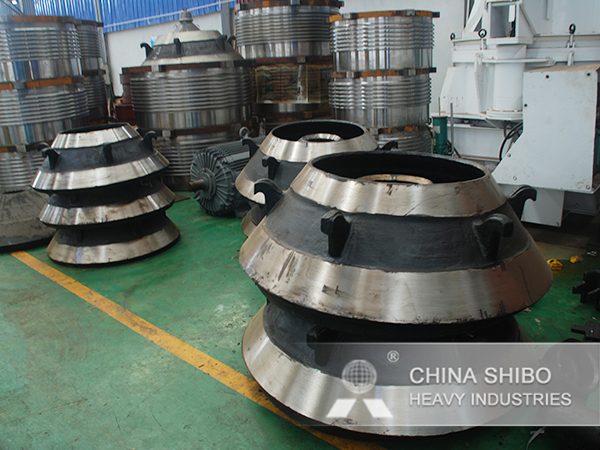

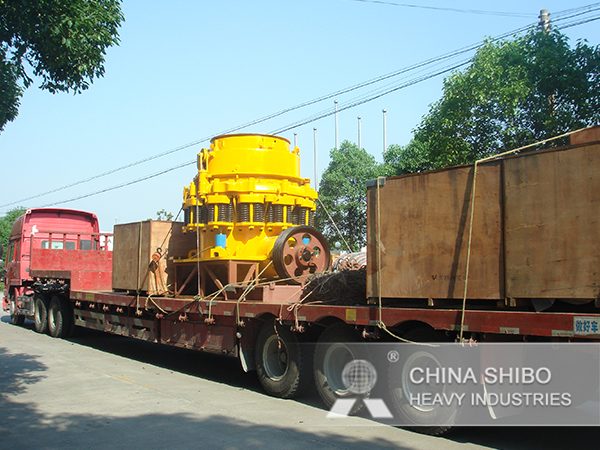

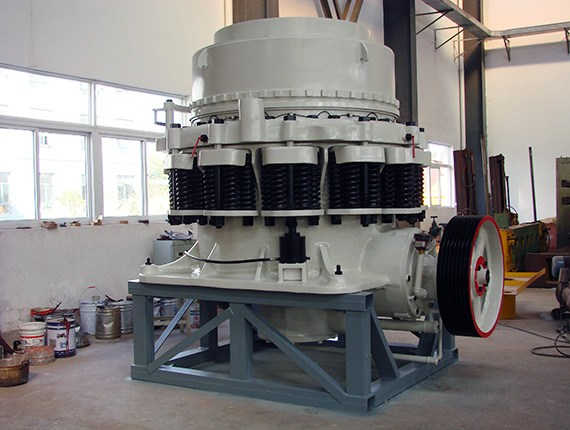

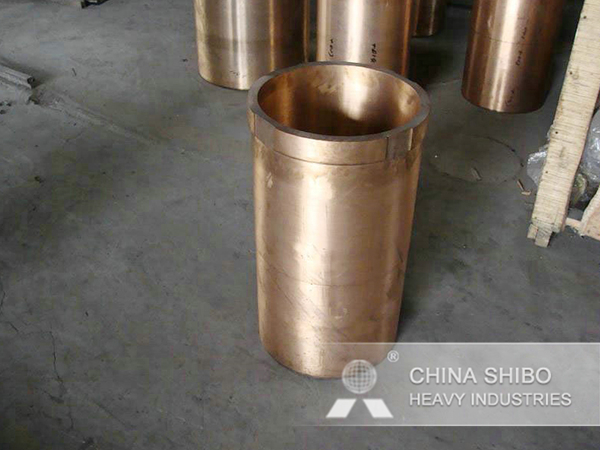

Gallery
Parameter
Standard CS Series High-efficiency Spring Cone Crusher
| Model | Movable Cone Dlameter(mm) | Cavity Type | Feed Opening Size(mm) | Discharging Opening Size(mm) | Main Shaft Speed(r/min) | Motor Power(kw) | Capacity(t/h) | Weight(t) | Overall Dlmenslon(mm) | |
| Shutting Size(mm) | Opening Size(mm) | |||||||||
| CS75B | 900 | Fine | 83 | 102 | 9-22 | 580 | 75 | 45-91 | 15 | 2821 × 1880 × 2164 |
| Coarse | 159 | 175 | 13-38 | 59-163 | ||||||
| CS110B | 1200 | Fine | 127 | 131 | 9-31 | 485 | 110 | 63-188 | 20 | 2821 × 1974 × 2651 |
| Medium | 156 | 156 | 13-38 | 100-200 | ||||||
| Coarse | 178 | 191 | 19-51 | 141-308 | ||||||
| CS160B | 1295 | Fine | 109 | 137 | 13-31 | 485 | 160 | 109-181 | 27 | 2800 × 2342 × 2668 |
| Medium | 188 | 210 | 16-38 | 132-253 | ||||||
| Coarse | 216 | 241 | 19-51 | 172-349 | ||||||
| CS220B | 1650 | Fine | 188 | 209 | 16-38 | 485 | 220 | 181-327 | 55 | 3911 × 2870 × 3771 |
| Medium | 213 | 241 | 22-51 | 258-417 | ||||||
| Coarse | 241 | 268 | 25-64 | 299-635 | ||||||
| CS315B | 2134 | Fine | 253 | 278 | 19-38 | 435 | 315 | 381-726 | 110 | 4631 × 3251 × 4732 |
| Medium | 303 | 334 | 25-51 | 608-998 | ||||||
| Coarse | 334 | 369 | 31-64 | 789-1270 | ||||||
Short head type CS Series High-efficiency Spring Cone Crusher
| Model | Movable Cone Dlameter(mm） | Cavity Type | Feed Opening Size(mm) | Discharging Opening Size(mm) | Capacity(t/h) | Main Shaft Speed(r/min) | Motor Power(kw) | Weight(t) | Overall Dlmenslon(mm) | |
| Shutting Size(mm) | Opening Size(mm) | |||||||||
| CS75D | 914 | Fine | 13 | 41 | 3-13 | 27-90 | 580 | 75 | 15 | 2821 × 1880 × 2410 |
| Coarse | 33 | 60 | 3-16 | 27-100 | ||||||
| CS110D | 1218 | Fine | 29 | 57 | 5-16 | 50-132 | 485 | 110 | 20 | 2560 × 1942 × 2928 |
| Medium | 44 | 73 | 10-16 | 90-145 | ||||||
| Coarse | 56 | 89 | 13-19 | 141-181 | ||||||
| CS160D | 1295 | Fine | 29 | 64 | 3-6 | 36-163 | 485 | 160 | 27 | 2800 × 2342 × 2668 |
| Medium | 54 | 89 | 6-16 | 82-163 | ||||||
| Coarse | 70 | 105 | 10-25 | 109-227 | ||||||
| CS22D | 1676 | Fine | 35 | 70 | 5-13 | 90-209 | 485 | 220 | 55 | 3917 × 2870 × 3771 |
| Medium | 54 | 89 | 6-19 | 136-281 | ||||||
| Coarse | 98 | 133 | 10-25 | 190-336 | ||||||
| CS315 | 2134 | Fine | 51 | 105 | 5-16 | 190-408 | 435 | 315 | 110 | 4130 × 3251 × 4454 |
| Medium | 95 | 133 | 10-19 | 354-508 | ||||||
| Coarse | 127 | 178 | 13-25 | 454-599 | ||||||
