Introduction
Ring Hammer Crusher Introduction and application
PCH ring hammer crusher is one of the equipments for middle and fine crushing in mining, metallurgy industry, building material, highway, railway, and chemical industry.
The raw material:
Compressive strength does not exceed of 100Mpa, Moisture content is less than 15%. Such as coal, salt, chalk, gypsum, brick, limestone etc.
It also can broke fiber structure\more flexibility and toughness of the broken wood, paper, waste of asbestos cement, recycling of asbestos fibers and so on...
Besides, Hammer crusher can be used not only in broken production line, sand production line system, but also can replace the cone crusher in the mineral processing production line.
PCH ring hammer crusher is one of the equipments for middle and fine crushing in mining, metallurgy industry, building material, highway, railway, and chemical industry.
The raw material:
Compressive strength does not exceed of 100Mpa, Moisture content is less than 15%. Such as coal, salt, chalk, gypsum, brick, limestone etc.
It also can broke fiber structure\more flexibility and toughness of the broken wood, paper, waste of asbestos cement, recycling of asbestos fibers and so on...
Besides, Hammer crusher can be used not only in broken production line, sand production line system, but also can replace the cone crusher in the mineral processing production line.
Advantage
1. The ring hammer crusher is designed with a simple structure, large crushing ratio and high production efficiency.
2. It is highly efficient and energy saving, and causes low noise and little dust.
3. The space between grid sections can be adjusted to change discharging granularity in line with clients’ needs.
4. The alloy hammerhead has excellent corrosion resistance and its service life is 1.5~2 times that of normal high manganese steel.
2. It is highly efficient and energy saving, and causes low noise and little dust.
3. The space between grid sections can be adjusted to change discharging granularity in line with clients’ needs.
4. The alloy hammerhead has excellent corrosion resistance and its service life is 1.5~2 times that of normal high manganese steel.

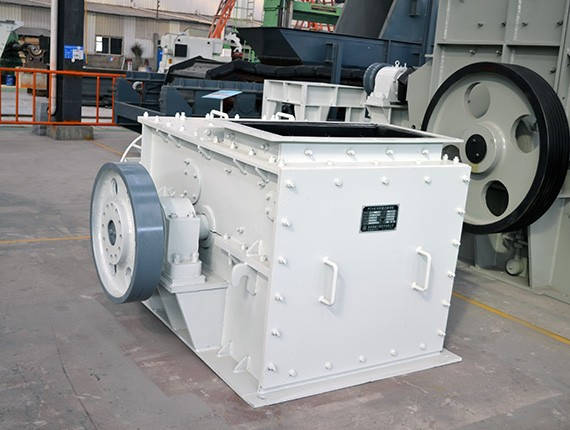

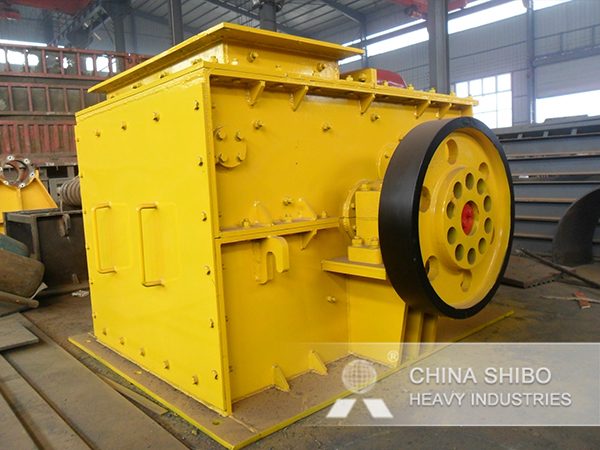

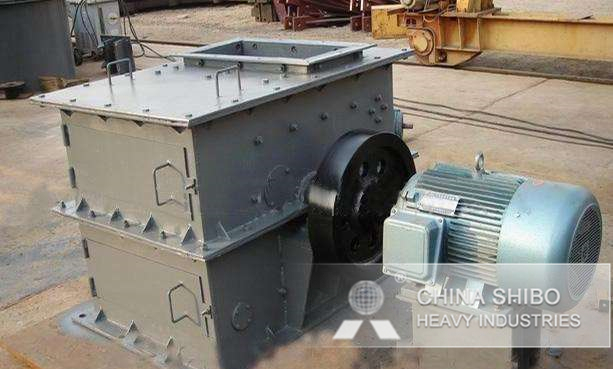

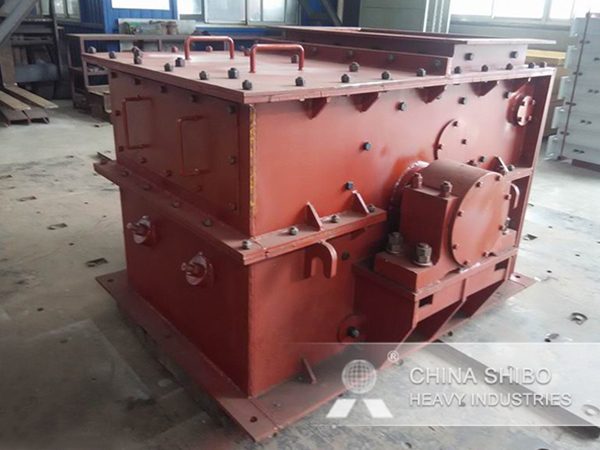

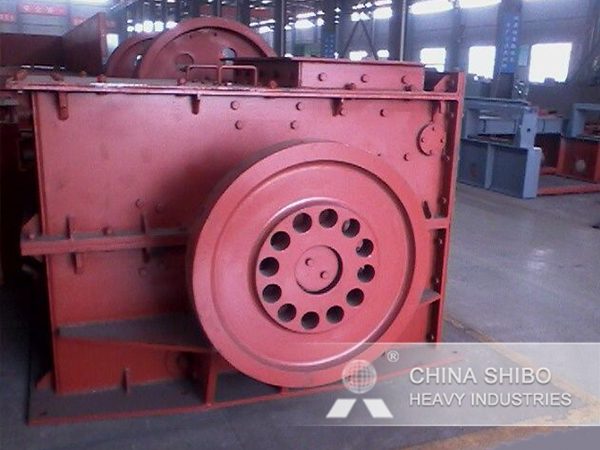

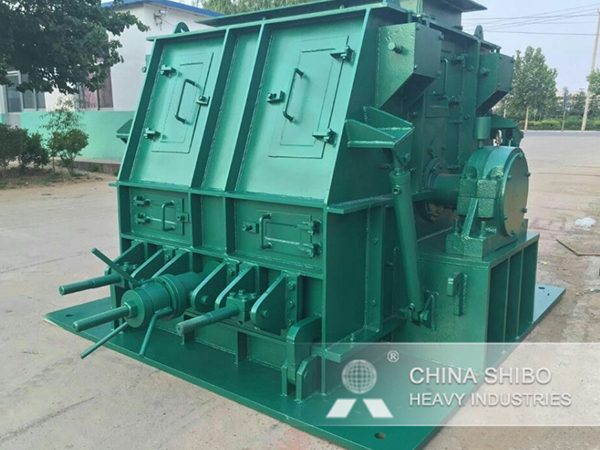

Gallery
Parameter
| Model | Feed Size (mm) | Discharge Size (mm) | Capacity (t/h) | Rotor Speed (r/min) | Motor | Weight (t) | Overall Dimension (mm) | |
| Model | Power (Kw) | |||||||
| PCH0402 | ≤200 | ≤10-30 | 8-12 | 960 | Y132M2-6 | 5.5 | 0.8 | 810x890x560 |
| PCH0404 | ≤200 | ≤10-30 | 16-25 | 970 | Y160L-6 | 11 | 1.05 | 980x890x570 |
| PCH0604 | ≤200 | ≤10-30 | 22-33 | 970 | Y180L-6 | 15 | 1.43 | 1050x1270x800 |
| PCH0606 | ≤200 | ≤10-30 | 30-60 | 980 | Y225M-6 | 30 | 1.77 | 1350x1270x1080 |
| PCH0808 | ≤250 | ≤10-30 | 70-105 | 740 | Y280M-8 | 45 | 3.6 | 1750x1620x1080 |
| PCH1010 | ≤300 | ≤10-30 | 160-200 | 740 | Y315M2-8 | 90 | 6.1 | 2100x2000x1340 |
| PCH1016 | ≤300 | ≤10-30 | 300-350 | 740 | JS-128-8 | 155 | 9.2 | 2700x2000x1350 |
| PCH1216 | ≤350 | ≤10-30 | 620-800 | 740 | Y450-8 | 355 | 15.0 | 4965x2500x1600 |
