Introduction
PCFK Series of Reversible Impact Hammer Crusher has advantages of both Hammer Crusher and Impact Crusher. It can break brittle materials of medium hardness, such as coking coal, anthracite, coal used for fluidized bed boiler of heat power plant, coal gangue, gypsum, alum, etc.
Advantage
1, the rotor reversible operation, improve work efficiency, save time;
2, no screen bar, reducing the material blocking the situation of the carnival occurred;
3, the hammer is made of high wear-resistant alloy materials to improve the life of the hammer;
4, the use of heavy hammer head, the production efficiency than the general can be improved nearly 2 times;
5, crushing chamber open convenience, easy maintenance, the use of hydraulic systems.

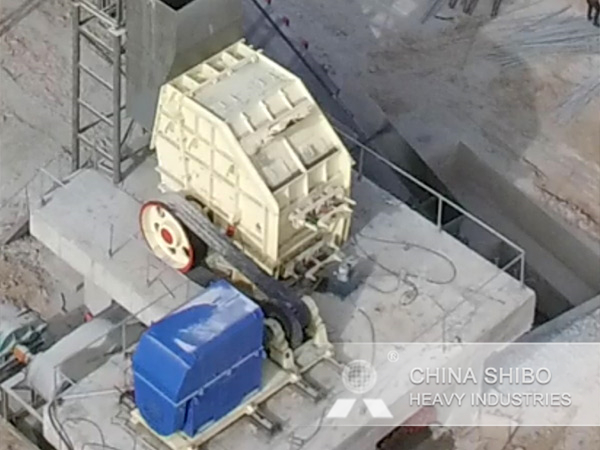

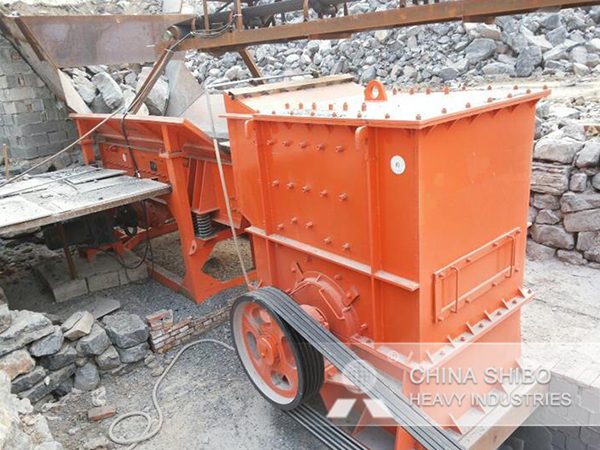

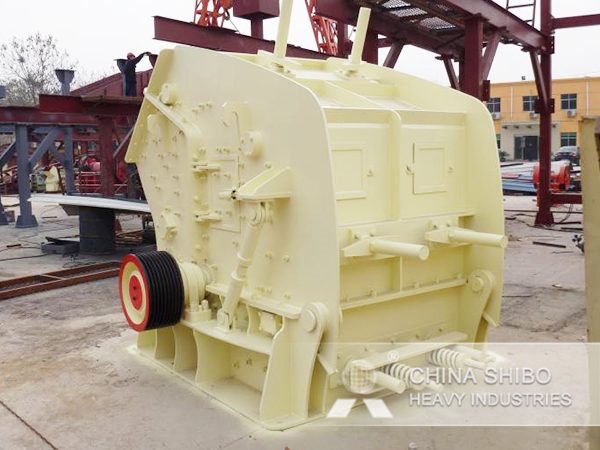

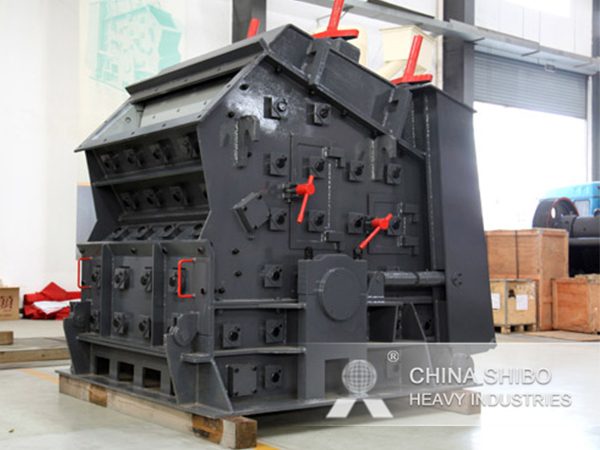

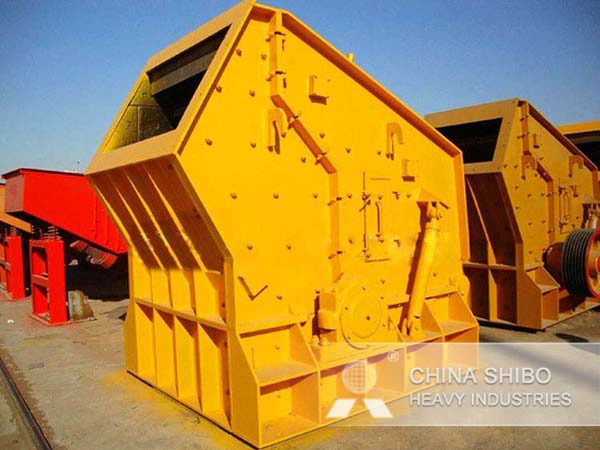

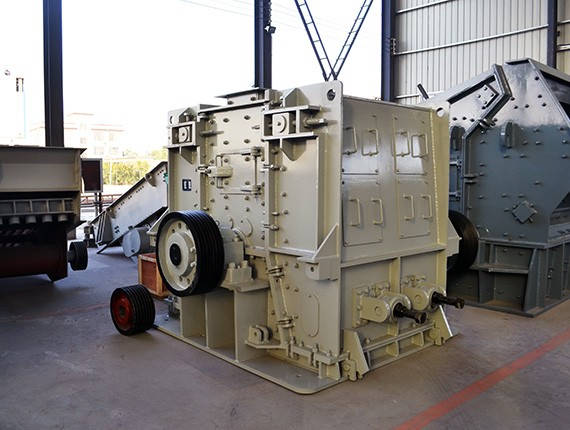

Gallery
Parameter
| Model | Rotor diameter (mm) | Rotor length (mm) | Feeding size (mm) | Discharge size (mm) | Capacity (t/h) | Rotary speed (r/min) | Power (KW) | Weight (t) | |
| 100% | 93% | ||||||||
| PCFK-0808 | 800 | 800 | ≤80 | 0-6 | 0-3 | 25-40 | 740 | 90 | 4.9 |
| PCFK-1010 | 1000 | 1000 | ≤80 | 0-6 | 0-3 | 35-70 | 740 | 90-110 | 11.4 |
| PCFK-1212 | 1200 | 1200 | ≤80 | 0-8 | 0-3 | 100-180 | 740 | 220-280 | 19 |
| PCFK-1214 | 1200 | 1400 | ≤80 | 0-8 | 0-3 | 120-220 | 740 | 220-280 | 21 |
| PCFK-1216 | 1200 | 1600 | ≤80 | 0-8 | 0-3 | 150-250 | 740 | 315-355 | 24 |
| PCFK-1414 | 1400 | 1400 | ≤80 | 0-8 | 0-3 | 220-300 | 740 | 355-450 | 25 |
| PCFK-1416 | 1400 | 1600 | ≤80 | 0-8 | 0-3 | 250-330 | 740 | 355-560 | 30 |
| PCFK-1616 | 1600 | 1600 | ≤80 | 0-8 | 0-3 | 280-350 | 740 | 450-560 | 32 |
| PCFK-1618 | 1600 | 1800 | ≤80 | 0-8 | 0-3 | 300-400 | 740 | 560-710 | 37 |
| PCFK-1818 | 1800 | 1800 | ≤80 | 0-8 | 0-3 | 400-450 | 740 | 710-800 | 45 |
| PCFK-1820 | 1800 | 2000 | ≤80 | 0-8 | 0-3 | 450-500 | 740 | 800-900 | 50 |
| PCFK-1825 | 1800 | 2500 | ≤80 | 0-8 | 0-3 | 500-550 | 740 | 900-1000 | 60 |
