Introduction
After many years of practice and improvement, its structure is getting perfect day by day.
For low consumption, low investment, environment friendly , small occupation area, and more efficient than the traditional mill, it is widely used in the field of metallurgy, building materials, chemical industry and mining to process powder. The series is used in grinding the non-flammable and non-explosive stuff which has the Moh’s hardness below 7, humidity less than 6%, such as gypsum, talc, calcite, limestone, marble, feldspar, barite, dolomite, granite, kaolin, bentonite, bauxite, iron ore etc., the final products change from 613 micron to 44 micron. Through the function of separator and blower, it can meet different customers' demand.
Advantage
1. The whole plant is a vertical structure of strong systematic characteristic, so it occupies small area. From crushing of raw material to grinding and packing is an independent production system.
2. Compared with other milling plants, its passing ratio achieves 99%, this is what other mill can not reach.
3. Driving system of main frame adopts airtight gearing and pulley, drives smoothly and operates reliably.
4. Main parts of the whole plant are made from cast and steel of high quality. The technics is so subtly that insures the durability of whole plant.
5. The electric control system is centralized controlled, so the automaticity is high, no people are needed in the operating room.

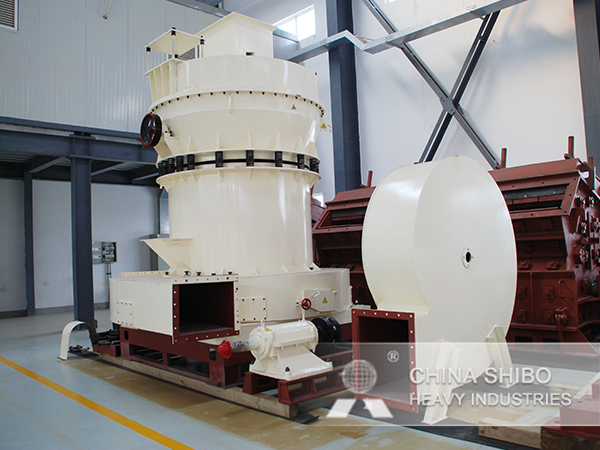

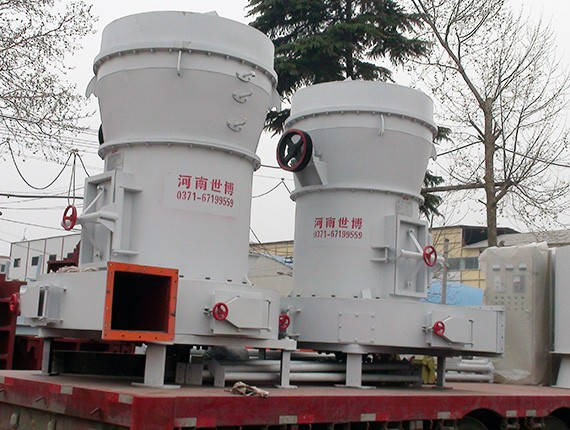

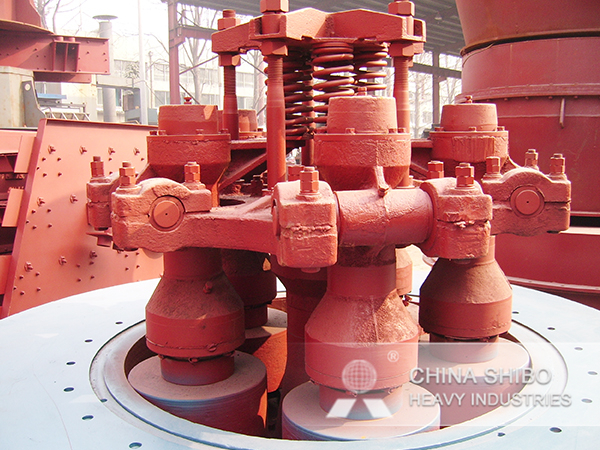

Gallery
Parameter
| Type | Roll Grinding | Maximum | Output Size | Output of | Motor Power | Blower Power | Analysis Machine Power(kw) | Overall | |
| Number | Feed Size(mm) | (mm) | 8 hours | (kw) | (kw) | Dimension(mm) | |||
| 3R1510 | 3 | 10 | 80-325 | 0.3-1.2 | 7.5 | 5.5 | 1.1 | 3200*2100*4500 | |
| 3R2115 | 3 | 20 | 80-325 | 0.4-1.6 | 15 | 11 | 2.2 | 4100*3300*4500 | |
| 3R2615 | 3 | 20 | 80-325 | 0.5-2.7 | 18.5 | 15 | 2.2 | 4300*3500*5100 | |
| 3R2715 | 3 | 20 | 80-325 | 0.7-3 | 22 | 18.5 | 2.2 | 5300*4100*5200 | |
| 4R3016 | 4 | 20 | 80-325 | 0.8-5 | 30 | 30 | 2.2 | 5300*4100*5200 | |
| 4R3015 | 4 | 25 | 80-325 | 1.0-4 | 30 | 22 | 2.2 | 5500*4300*5400 | |
| 4R3216 | 4 | 25 | 80-325 | 1.0-8 | 45 | 30 | 5.5 | 7100*5900*7900 | |
| 4R3220 | 4 | 28 | 80-400 | 1.8-4.5 | 45 | 37 | 5.5 | 8000*6000*9500 | |
| 5R4119 | 5 | 30 | 80-400 | 2.3-8.0 | 75 | 75 | 7.5 | 9200*7250*9700 | |
| 6R4427 | 6 | 35 | 80-400 | 2.5-15 | 132 | 132 | 11 | 12550*5700*8355 | |
