Introduction
PCZ series hammer crusher is a new type of stone crusher based on PC series. With a hammer pin diameter, hammer weight, hit the line speed high significant features. With a large particle size, high crushing ratio, low maintenance costs.
Advantage
1.large crushing ratio
2.convenient maintenance
3.The granularity can be adjusted
4.wear resistant and impact resistant
5.compact structure and few easy-wearing parts
6.sealed structure,less pollution and ash leakage of the machine

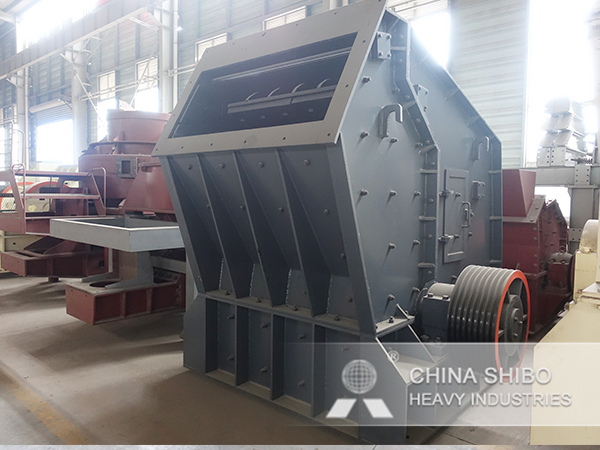

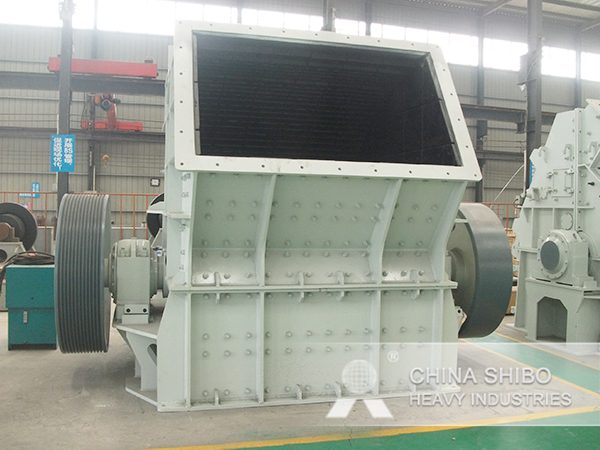

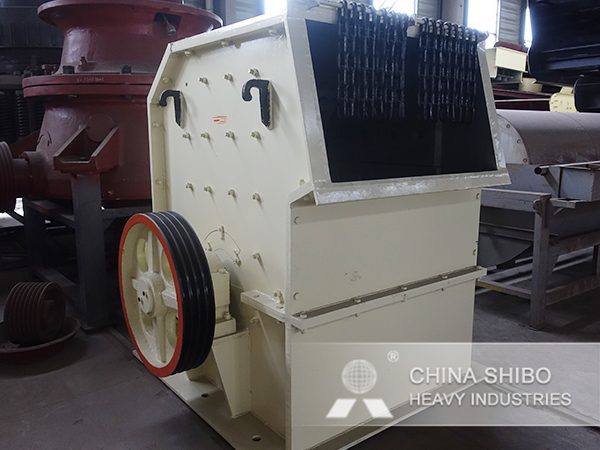

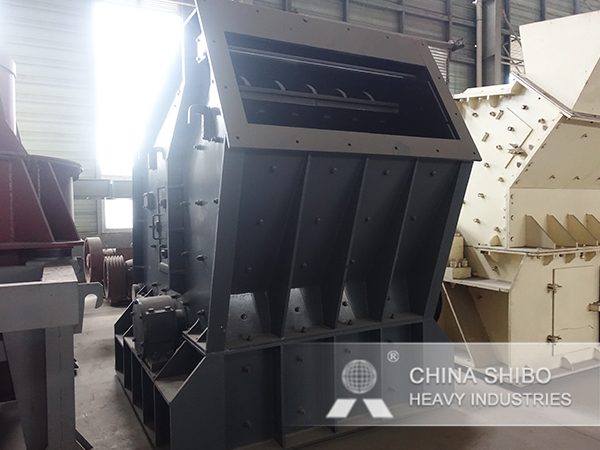

Gallery
Parameter
| Model | Rotor diameter x length (mm) | Feed Opening Size Length x Width (mm) | Feeding Size (mm) | Capacity (t/h) | Motor Power (kw) | Dimensions (mm) |
| PCZ1308-Ⅱ | 1310×790 | 850x800 | ≤600 | 100-160 | 132 | 2818×2100×2390 |
| PCZ1510-Ⅴ | 1500×950 | 1000x900 | ≤700 | 160-210 | 132x2 | 3260x2414x2750 |
| PCZ1512-Ⅴ | 1500x1160 | 1200x900 | ≤750 | 250-320 | 160x2 | 3260×2624×2750 |
| PCZ1615-Ⅵ | 1650×1452 | 1500x1200 | ≤1000 | 420-500 | 200x2 | 3456x2915x3185 |
| PCZ1620-Ⅱ | 1660x1900 | 2000x1200 | ≤1200 | 800-1000 | 400x2 | 3500x3100x3200 |
| PCZ1820 | 1800x1964 | 2000x1200 | ≤1200 | 1000-1200 | 450x2 | 3270x3210x3520 |
| PCZ2125 | 2100x2486 | 2600x1690 | ≤1600 | 2000-2500 | 1250 | 3728x4565x4667 |
