Mobile Cone Crushing Plant

Mobile Cone crusher is widely used in the current mining market. It is available for River pebbles, rocks (limestone, granite, basalt, diabase, andesite, etc.), ore tailings, artificial crushed stone.

Application:Mines, coal mines, waste and construction waste recycling, earth and stone works, urban infrastructure, roads or construction sites and other venues.

Mobile Cone Crushing Plant

Introduction

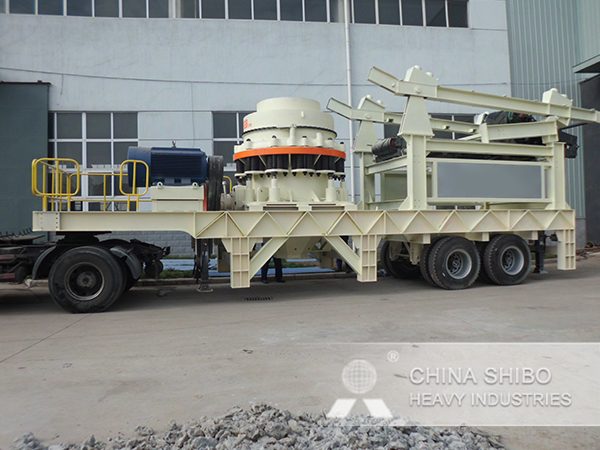

Mobile cone crusher with a cone crusher as the main rock crusher equipment.In the application of mobile crushing station, it is equipped with high performance and high-capacity CS cone crusher and HP Serious Hydraulic Cone Crusher in two-stage and three-stage fine crushing.Mobile cone crusher can achieve high productivity,large crushing ratio and excellent grain shape.

Mobile Cone Crushing Plant

Advantage

1.High crushing efficiency

2.Convenient for road transportation

3.Compact structure,occupy less space

4.Reliable and stable quality assurance

5.Light and reasonable structural design

Mobile Cone Crushing Plant

Mobile Cone Crushing Plant

Mobile Cone Crushing Plant

Mobile Cone Crushing Plant

Parameter

Item Unit MC75 MC160 MHC220
Transportation Length mm 14000 16000 16000
Transportation Width mm 3100 3100 3100
Transportation Height mm 4300 4500 4500
Max Length mm 14000 16400 16400
Max Width mm 3400 3400 3400
Max Height mm 4700 4700 4700
Weight t 34.5 49.5 41
Tire Configuration   Dual-axial Dual-axial Dual-axial
Crusher   CS75 CS160 SHC220
Belt Conveyor Under Vibrating Screen   B800x6M B800x7M B800x7M
Vibrating Screen   3YZS1848 3YZS1860 3YZS1860
