Introduction
Impact crusher can crush stone (granite, limestone, concrete, etc)with max feed size less than 800mm and crush strength less than 360Mpa. It is widely used for crushing ore in mining, highway, railway, construction, etc. Through practice, impact crusher is an irreplaceable crushing equipment for high-grade sand and gravel.
Advantage
1.High-efficiency and energy saving
2.high production ratio and small abrasion
3.easy maintenance and economical reliable
4.compact structure and strong rigidness
5.adjust final products,simplify crushing process

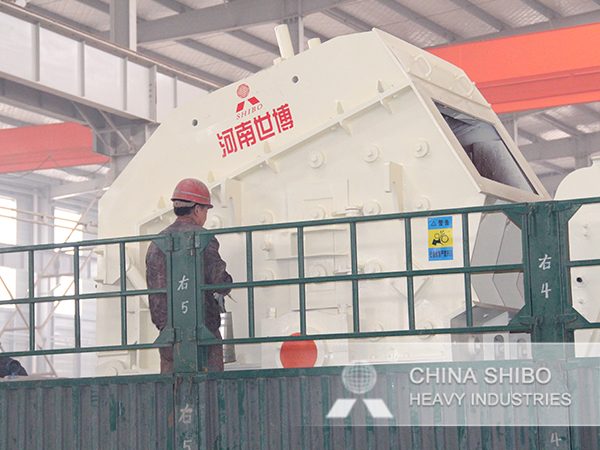

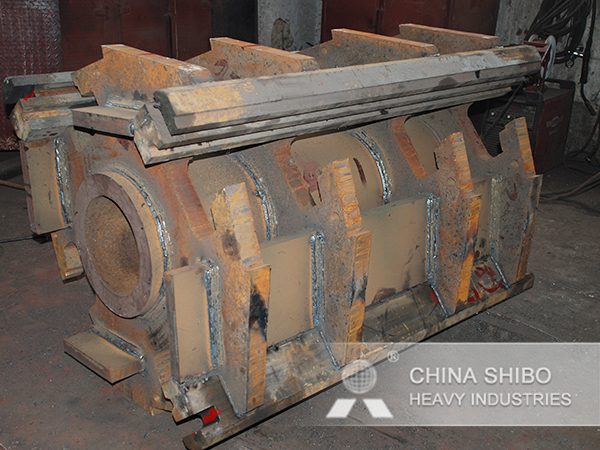

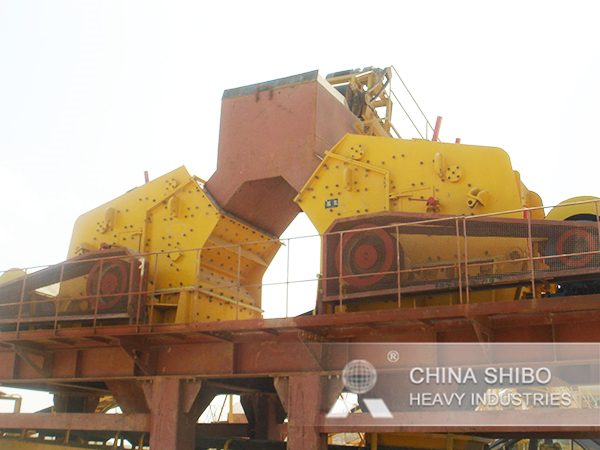

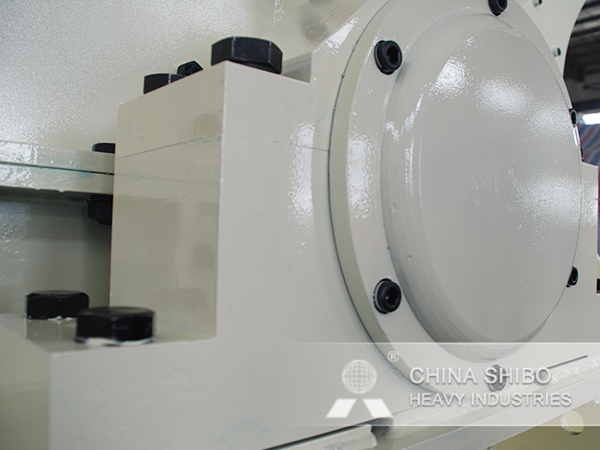

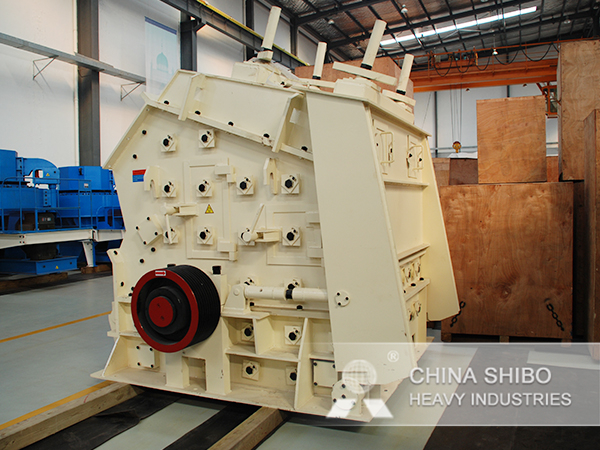

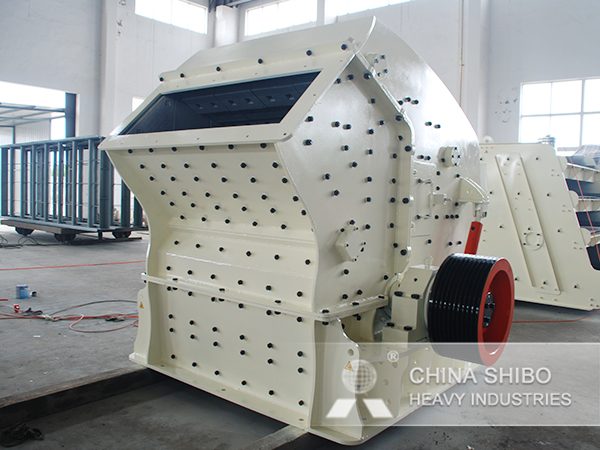

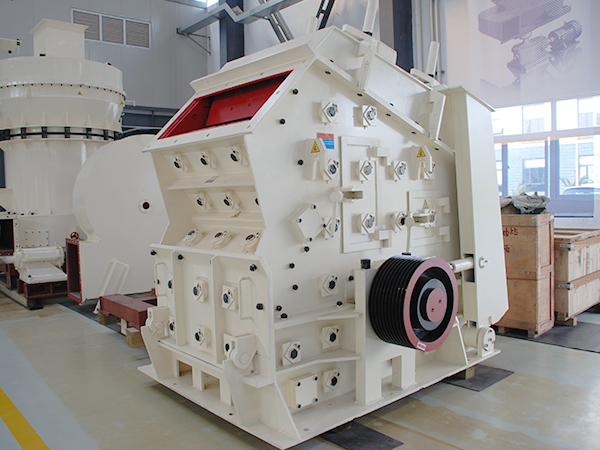

Gallery
Parameter
| Model | Rotor Specification(mm) | Feeder Opening Size(mm) | Feeding size (mm) | Capacity(t/h) | Power(kw) | Overall Dimension (mm) |
| PF-1007 | Φ1000 × 700 | 400 x 730 | ≤250 | 15-60 | 45 | 2319 x 1654 x 2558 |
| PF-1010 | Φ1000 × 1050 | 400 x 1080 | ≤300 | 50-90 | 55 | 2319 x 2001 x 2558 |
| PF-1210 | Φ1250 × 1050 | 450 x 1060 | ≤300 | 80-150 | 90 | 2585 x 2053 x 2809 |
| PF-1214 | Φ1250 × 1400 | 450 x 1440 | ≤300 | 100-200 | 132 | 2582 x 2403 x 2809 |
| PF-1315 | Φ1320 × 1500 | 550 x 1530 | ≤350 | 130-280 | 160 | 2930 x 2761 x 3053 |
| PF-1320 | Φ1320 × 2000 | 610 x 1900 | ≤500 | 180-400 | 220 | 3224 x 3175 x 2706 |
| PF-1520 | Φ1500 x 2000 | 830 x 2040 | ≤700 | 300-550 | 315-400 | 3959 x 3564 x 3330 |
| PF-1820 | Φ1800 x 2000 | 1260 x 2040 | ≤800 | 600-800 | 630-710 | 4400 x 3866 x 4009 |
| PFV-1210 | Φ1250 x 1050 | 450 x 1060 | ≤300 | 80-150 | 90 | 2582 x 2053 x 2809 |
| PFV-1214 | Φ1250 x 1400 | 450 x 1440 | ≤300 | 100-200 | 132 | 2582 x 2403 x 2809 |
| PFV-1315 | Φ1320 x 1520 | 550 x 1530 | ≤350 | 130-280 | 185 | 2930 x 2761 x 3053 |
| PFV-1320 | Φ1320 x 2000 | 610 x 1900 | ≤500 | 180-400 | 250 | 3224 x 3175 x 2706 |
