Introduction
Multi-cylinder hydraulic cone crusher is suitable for crushing above medium hardness of various minerals and rocks, such as limestone, iron ore, pebbles, non-ferrous metal ore, granite, basalt, limestone, quartzite and sandstone. Its high speed, high crushing capacity and unique patented design make the final products with a very high quality cube type, and the characteristics of easy to maintain ensure excellent high stability of the operation. It is the world- renowned, and the latest generation of hydraulic cone crusher in the mining construction industry compared to the spring cone crusher.
Advantage
1.Stable operational capacity.
2.High production capacity,35% -60% higher than spring cone crusher.
3.Perfect finished particles,final product gradation more reasonable.
4.High crushing efficiency, 5% -15%higher than spring cone crusher.
5.Advanced lubrication mechanism,bearing lubrication double protection and overload protection.

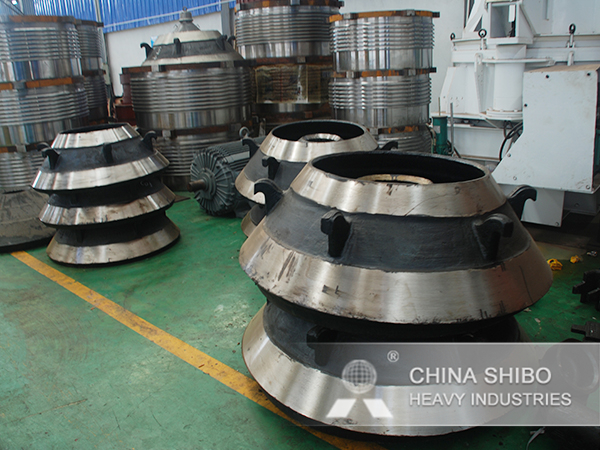

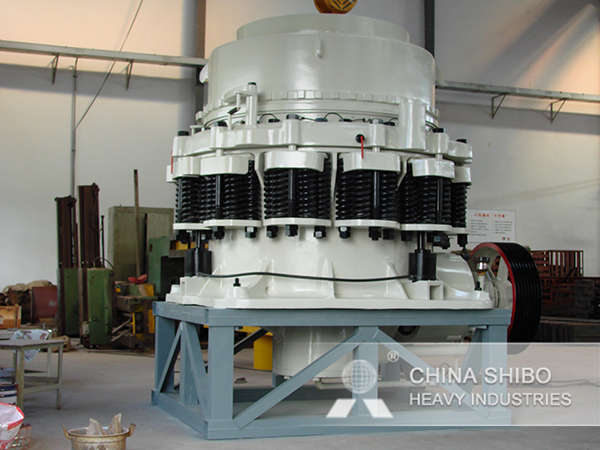

Gallery
Parameter
| Model | Cavity Type | Broken Cone Big End Diameter(mm) | Feed Opening Size(mm) | Maximum feed size(mm) | Discharging Opening Size(mm) | Capacity(t/h) | Main Motor Power(kw) | Weight(t) |
| HP200 | C1 | 900 | 210 | 178 | 22~38 | 160~250 | 4P 160 | 10.1 |
| C2 | 155 | 132 | 18~38 | 145~250 | ||||
| C3 | 130 | 110 | 14~38 | 120~250 | ||||
| F1 | 118 | 100 | 12~25 | 108~210 | ||||
| F2 | 90 | 76 | 10~25 | 81~210 | ||||
| F3 | 70 | 60 | 8~25 | 72~210 | ||||
| HP300 | C1 | 1100 | 235 | 200 | 26~45 | 230~445 | 4P 220 | 17.8 |
| C2 | 211 | 180 | 20~45 | 200~445 | ||||
| C3 | 135 | 115 | 16~45 | 180~445 | ||||
| F1 | 124 | 105 | 14~25 | 160~220 | ||||
| F2 | 96 | 82 | 12~25 | 140~220 | ||||
| F3 | 70 | 60 | 8~25 | 120~220 | ||||
| HP400 | C1 | 1400 | 330 | 280 | 26~51 | 270~630 | 4P 315 | 25 |
| C2 | 200 | 170 | 22~51 | 243~630 | ||||
| C3 | 152 | 130 | 16~51 | 210~630 | ||||
| F1 | 135 | 115 | 12~25 | 162~370 | ||||
| F2 | 106 | 90 | 10~25 | 126~370 | ||||
| F3 | 80 | 68 | 8~25 | 104~370 | ||||
| HP500 | C1 | 1500 | 335 | 285 | 32~51 | 365~790 | 4P 400 | 34.1 |
| C2 | 229 | 190 | 25~51 | 328~790 | ||||
| C3 | 180 | 152 | 19~51 | 280~790 | ||||
| F1 | 152 | 130 | 13~25 | 202~450 | ||||
| F2 | 124 | 105 | 10~25 | 158~450 | ||||
| F3 | 88 | 75 | 8~25 | 122~450 | ||||
| HP800 | C1 | 2000 | 385 | 326 | 32~51 | 616~1100 | 4P 630 | 69.2 |
| C2 | 350 | 298 | 25~51 | 522~1100 | ||||
| C3 | 280 | 238 | 16~51 | 380~1100 | ||||
| F1 | 160 | 136 | 13~25 | 328~730 | ||||
| F2 | 120 | 102 | 10~25 | 270~730 | ||||
| F3 | 90 | 77 | 8~25 | 166~730 |
