Introduction
HGM micro powder grinding mill learn from Sweden advanced grinding technology, based on the domestic mill market trends and demand for ultra-fine powder processing users tailored to a new device. Mainly applicable to calcite, calcium carbonate, dolomite, talc and other Mohs hardness of 9 below the humidity of 6% or less non-flammable and explosive materials.
Advantage
1. Efficient
Compared with jet mill, mixing grinder and ball mill of same finished product size and motor power, MW Micro-Powder Mill has double capacity and saves 30% energy.
2. Long Life of Spare Parts
Forged by special material, the ring and roller can be used for about one year while grinding calcium carbonate.
3. High fineness and flexible adjustment
The product size can be adjusted between 325 mesh to 2500 mesh (47-5micron).2. Long Life of Spare Parts
Forged by special material, the ring and roller can be used for about one year while grinding calcium carbonate.
4. Environmentally friendly
The application of pulse dust collector and muffler greatly reduce dust pollution and noise.

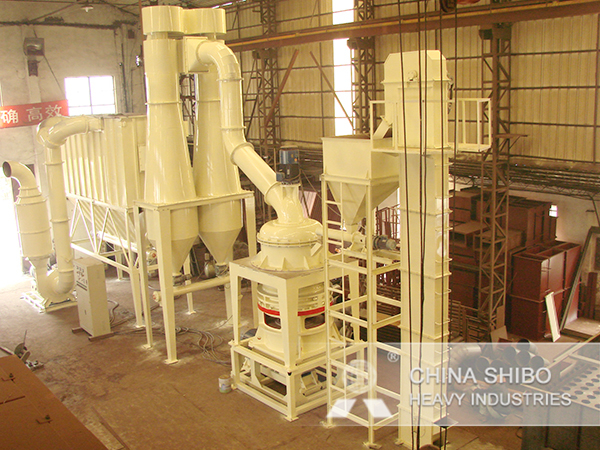

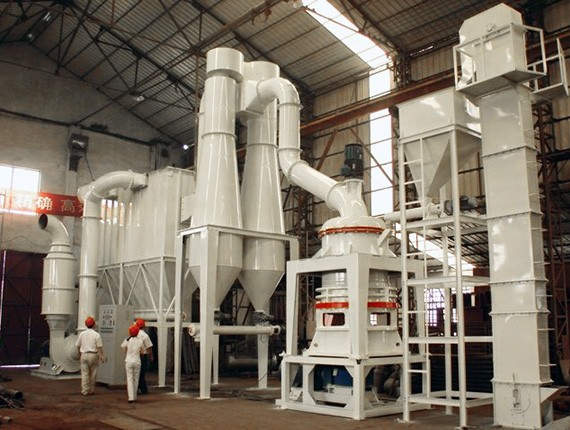

Gallery
Parameter
| Model | HGM80 | HGM90 | HGM100 | HGM100A | HGM125 |
| Ring Diameter(mm) | 800 | 930 | 1035 | 1035 | 1300 |
| Ring Number (PCS) | 3 | 42067 | 3 | 4 | 4 |
| Roller Number(PCS) | 21 | 24-32 | 27 | 34-36 | 40-44 |
| Main Shaft Speed (r. p. min) | 230-240 | 200-220 | 180-200 | 180-200 | 135-155 |
| Input Size (mm) | ≤20 | ||||
| Finished Size (um) | 5-47(325-2500) | ||||
| Capacity (t/h) | 0.5-4.5 | 0.6-6.5 | 0.7-7 | 1-8.5 | 1.5-12 |
| Outlet Size L*W*H (m) | 13.9*4*6.2 | 14.7*4.8*7.2 | 18*4.6*8.6 | 18*4.6*8.6 | 14*9*10.25 |
| Motor powder (KW) | 145-165 | 185-204 | 263 | 263-290 | 380-430 |
