Introduction
Combination crusher mainly used for crushing all kinds of hard minerals, it can be widely used in mining, metallurgy, refractories, cement, coal, glass, ceramics, electricity and other industries. With advantages of large crushing ratio, high yield, high efficiency, energy saving, long lifetime of wearing parts etc.
Advantage
1. simple structure,low operation cost
2. large crushing ratio,energy saving
3. the function of both fine crushing and coarse grinding
4. can crush water content materails,the water content can reach about 8%

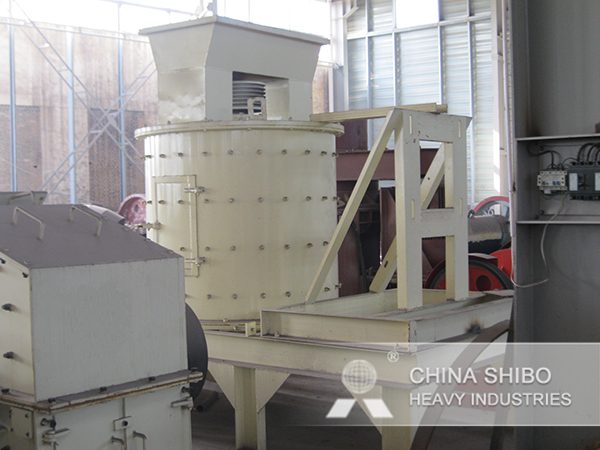

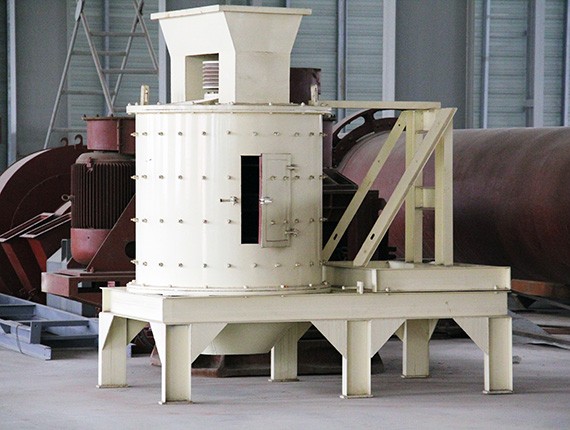

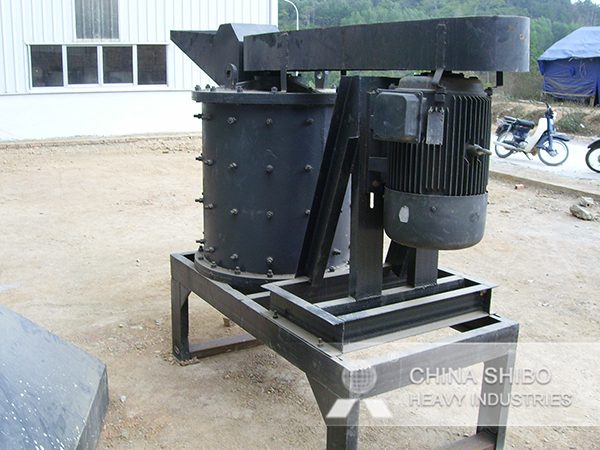

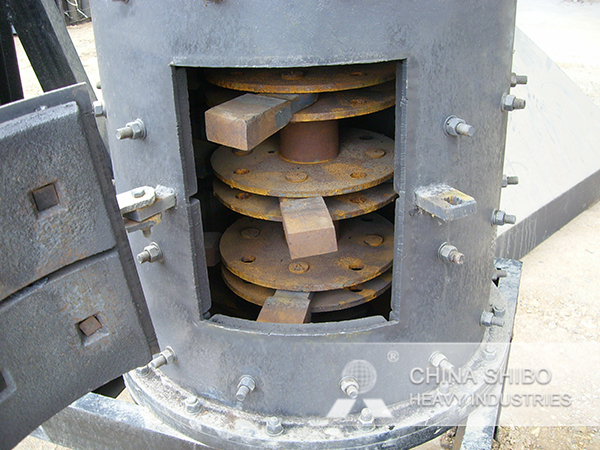

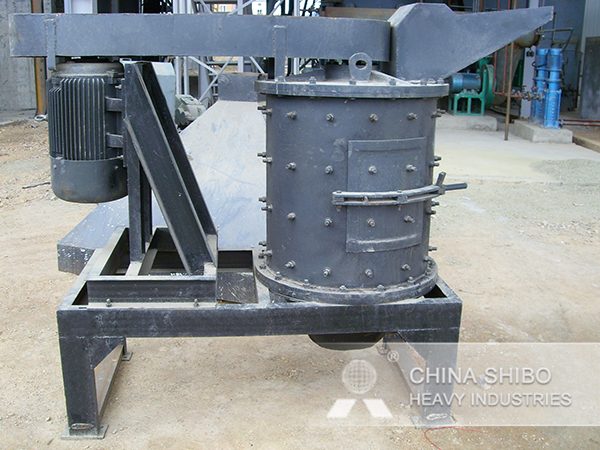

Gallery
Parameter
| Model | 800 | 1000 | 1250 | 1500 | 1750 | |
| Motor diameter (mm) | 650 | 800 | 1000 | 1250 | 1560 | |
| Cylinder height (mm) | 800 | 850 | 850 | 1000 | 1410 | |
| Main shaft rotation speed (r/min) | 1350 | 970 | 740 | 650 | 600 | |
| Feeding size (mm) | 50 | 70 | 100 | 100 | 100 | |
| Discharging size (mm) | 0-5 | 0-5 | 0-5 | 0-5 | 0-5 | |
| Capacity (t/h) | 5-15 | 10-30 | 20-60 | 30-80 | 40-100 | |
| Motor | Power (kw) | 4P 30 | 4P 55 | 4P 90 | 4P 110 | 4P 132 |
| Speed (r/min) | 1440 | 1440 | 750 | 750 | 750 | |
| Overall Dimension (mm) | 2200×860×1980 | 2700×1160×2000 | 2800×1400×2730 | 3100×1900×2300 | 3350×2100×2800 | |
| Weight(t) | 2.3 | 4.5 | 9.73 | 18.1 | 26.61 | |
