Introduction
The eccentric shaft vibration exciter and partial block help to adjust amplitude. This kind of screen has long stream line, many specifications and clear screening for different specifications. It has features of credible structure, strong exciting force, high screening efficiency, low noise, convenient maintenance, safe operation, etc. So it is widely used in the quarry, building material, transportation, energy, chemistry, etc.
Advantage
1.Flexible connection
2.Stable operation and low noise
3.High efficiency and large capacity
4.long durability and low consumption
5.Simple structure and easy maintenance

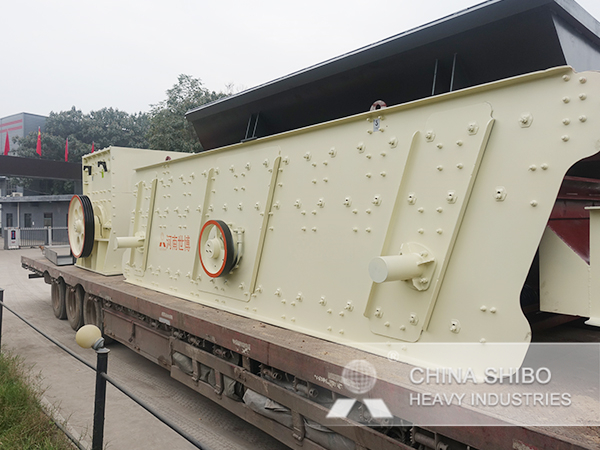

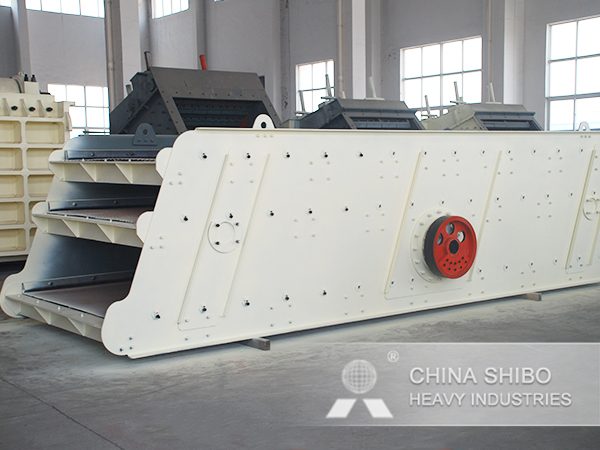

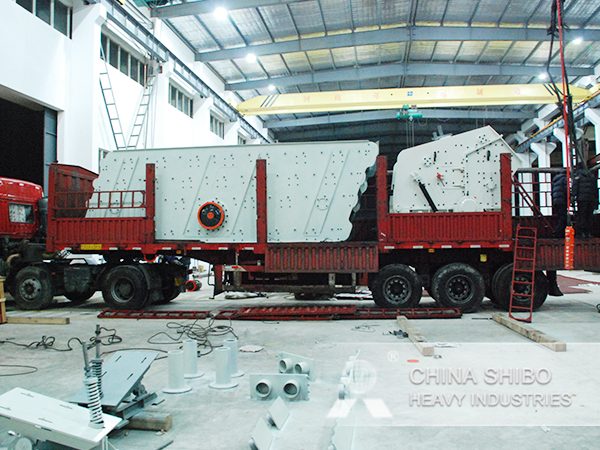

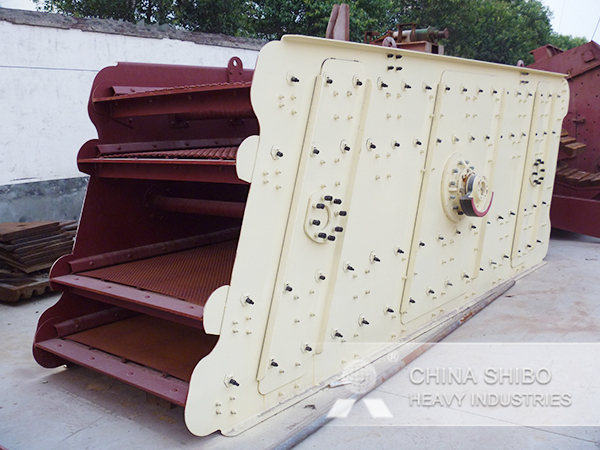

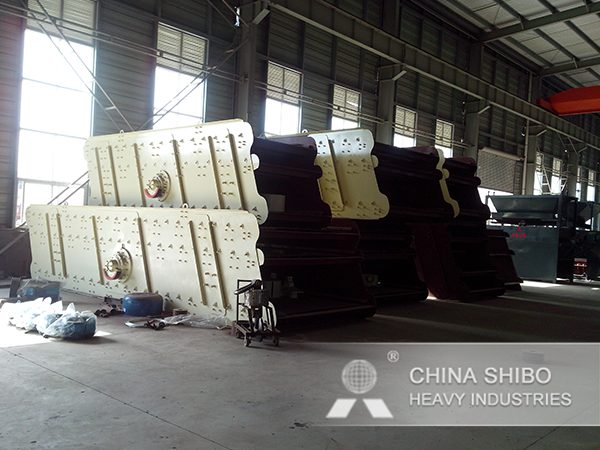

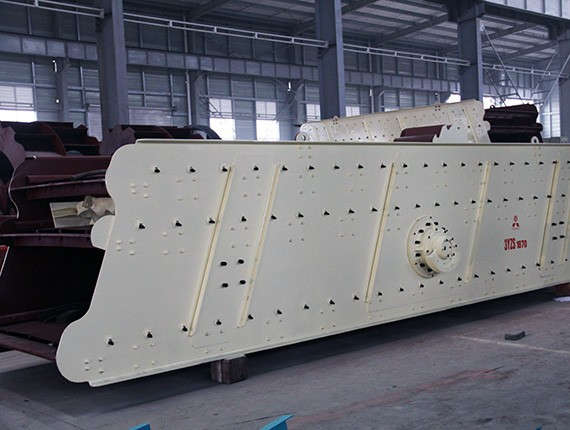

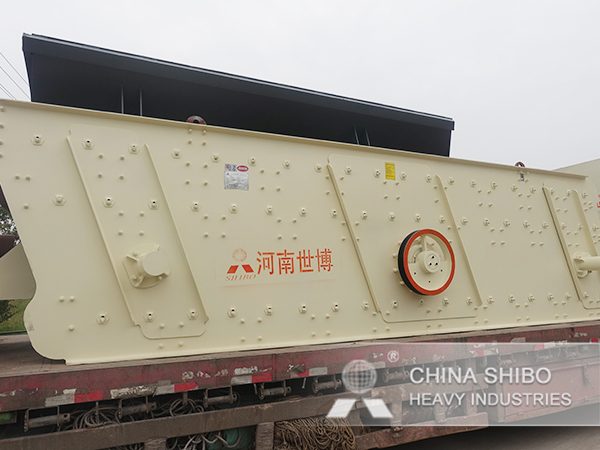

Gallery
Parameter
| Model | Screen Surface Specification (mm) | Layers | Sieve Pore Size (mm) | Feeding Size (mm) | Capacity (t/h) | Motor Power(kw) | Vibrating Frequency (r/min) | Double Amplitude (mm) |
| 2YZS1225 | 2500 × 1200 | 2 | 4-50 | ≤400 | 8-60 | 5.5 | 800-970 | 8 |
| 3YZS1225 | 2500 × 1200 | 3 | 4-50 | ≤400 | 10-70 | 5.5 | 800-970 | 8 |
| 2YZS1230 | 3000 × 1200 | 2 | 4-50 | ≤400 | 12-78 | 7.5 | 800-970 | 8 |
| 3YZS1230 | 3000 × 1200 | 3 | 4-50 | ≤400 | 13-80 | 7.5 | 800-970 | 8 |
| 2YZS1237 | 3700 × 1200 | 2 | 3-50 | ≤200 | 30-100 | 5.5 | 970 | 5-9 |
| 3YZS1237 | 3700 × 1200 | 3 | 3-50 | ≤200 | 30-100 | 7.5 | 970 | 5-9 |
| 2YZS1548 | 4800 × 1500 | 2 | 3-100 | ≤400 | 30-275 | 15 | 970 | 5-9 |
| 3YZS1548 | 4800 × 1500 | 3 | 3-100 | ≤400 | 30-275 | 15 | 970 | 5-9 |
| 2YZS1848 | 4800 × 1800 | 2 | 3-100 | ≤400 | 56-330 | 18.5 | 970 | 5-9 |
| 3YZS1848 | 4800 × 1800 | 3 | 3-100 | ≤400 | 56-330 | 18.5 | 970 | 5-9 |
| 4YZS1848 | 4800 × 1800 | 4 | 3-80 | ≤400 | 56-330 | 22 | 970 | 5-9 |
| 2YZS1860 | 6000 × 1800 | 2 | 3-100 | ≤400 | 65-586 | 18.5 | 970 | 5-9 |
| 3YZS1860 | 6000 × 1800 | 3 | 3-100 | ≤400 | 65-586 | 22 | 970 | 5-9 |
| 4YZS1860 | 6000 × 1800 | 4 | 3-100 | ≤400 | 65-586 | 30 | 980 | 5-9 |
| 2YZS2160 | 6000 × 2100 | 2 | 3-100 | ≤400 | 81-720 | 22 | 980 | 5-9 |
| 3YZS2160 | 6000 × 2100 | 3 | 3-100 | ≤400 | 81-720 | 30 | 970 | 5-9 |
| 4YZS2160 | 6000 × 2100 | 4 | 3-100 | ≤400 | 81-720 | 30 | 980 | 5-9 |
| 2YZS2460 | 6000 × 2400 | 2 | 3-150 | ≤400 | 100-810 | 22 | 970 | 5-9 |
| 3YZS2460 | 6000 × 2400 | 3 | 3-150 | ≤400 | 100-810 | 30 | 980 | 5-9 |
| 4YZS2460 | 6000 × 2400 | 4 | 3-150 | ≤400 | 150-850 | 37 | 980 | 5-9 |
| 2YZS2870 | 7000 × 2800 | 2 | 5-100 | ≤400 | 120-680 | 22 × 2 | 750 | 8 |
| 3YZS2870 | 7000 × 2800 | 3 | 5-100 | ≤400 | 180-720 | 22 × 2 | 750 | 8 |
| 2YZS3072 | 7200 × 3000 | 2 | 5-100 | ≤400 | 200-700 | 22 × 2 | 750 | 8 |
| 3YZS3072 | 7200 × 3000 | 3 | 5-100 | ≤400 | 230-800 | 22 × 2 | 750 | 8 |
